轮辐式

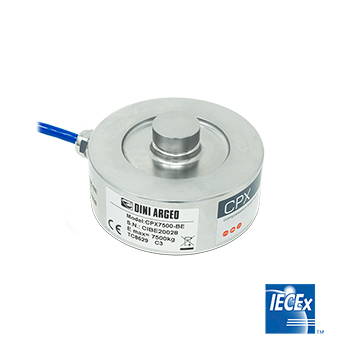

*CPX SERIES LOW PROFILE COMPRESSION LOAD CELLS


  *CPX SERIES LOW PROFILE COMPRESSION LOAD CELLS

ATEX版本
不锈钢轮辐式传感器,广泛应用于称量罐或料仓等系统。

量程 (kg): 250, 500, 1000, 2500, 5000, 7500, 10000, 15000, 30000, 50000, 100000.
不锈钢 IP68/IP69K C3精度

规格参数

  • 小巧耐用
  • 不锈钢结构
  • IP68
  • 量程可选250 - 100000 kg
  • 配屏蔽电缆

性能参数

  • 灵敏度:2mV/V +/- 0.5%
  • 非重复性:0.01% F.S.
  • 温度对零点输出的影响:0.02% F.S. /10°C
  • 温度对灵敏度的影响:0.02%F.S. /10°C
  • 温度补偿范围:-10°C/+50°C
  • 工作温度:-20°C/+60°C
  • 蠕变 (30分钟):0.02% F.S.
  • 输入阻抗:750 ± 10 Ohm
  • 输出阻抗:700 ± 5 Ohm
  • 零点回复:+/-1% F.S.
  • 绝缘阻值:>5000 MOhm
  • 安全过载:120% F.S.
  • 6芯屏蔽电缆,直径5mm
    - CP 250...5000型号,电缆长5m
    - CP 7500...100000型号,电缆长10m
DOWNLOAD
????

Code
Max
(kg)
CPX1000-BE1000
CPX2500-BE 2500
CPX5000-BE 5000
CPX7500-BE 7500
CPX10000-BE 10000
Mounting kits
 型号说明
KCPN10 Stainless steel kit for assembling a CPX cell, up to 12.500kg and CPA up to 10.000kg (load cell not included).
KCPN10PRO UNI EN 1090 stainless steel mounting kit for CPX load cells up to 12.500kg and CPA up to 10.000kg (Load cell not included).
Mounting kits
Connection cables
 型号说明
LCCB 6芯屏蔽电缆,供传感器或接线盒接线使用。€/米
LCCBA Ex 6-pole shielded cable for RS232 serial port/power supplier, for using in hazardous areas. Price/meter
LCCBM6 4芯屏蔽电缆,供传感器或接线盒接线使用。€/米
EXCB6(S6) 传感器防爆6芯屏蔽电缆,供本安区域内使用。€/米
PRCB 电缆外层保护套。€/米
 型号说明
DGT1 导轨式安装称重显示器 可安装在DIN导轨上使用,配有5个按键、LED显示屏、实时时钟板、Alibi内存板及多功能程序软件。
DGT1SX 重量变送器在DIN杆,2输入2输出 装有5键键盘和LED显示。多功能称重程序。
DGT4X DIN导轨式安装重量变送器/称重显示器带2输入2输出 配有5个按键、LED显示屏及标准软件型号。
DGTQ 机柜式安装重量变送器/称重显示器带2输入2输出 配有5个按键、LED显示屏及标准软件型号。
 型号说明
DFWIECEX IECEX and ATEX certified weight indicator for zones 1, 21, 2, 22. Protection: Ex II 2(2)G(1)G Ex ib [ib Gb] [ia Ga] IIC T4 Gb X for gas and Ex II 2(2)D(1)D Ex tb [ib Db] [ia Da] IIIC T135°C Db X for dust (Ta=0°C/+50°C). Always combine with IECEXPW power supply or IECEXB battery. Includes printed safety instructions and EU ATEX declaration of conformity (EN, DE, FR, ES, IT).
DFWIECEX-BATCH1 IECEX and ATEX certified weight indicator for zones 1, 21, 2, 22. Protection: Ex II 2(2)G(1)G Ex ib [ib Gb] [ia Ga] IIC T4 Gb X for gas and Ex II 2(2)D(1)D Ex tb [ib Db] [ia Da] IIIC T135°C Db X for dust (Ta=0°C/+50°C). Always combine with IECEXPW power supply or IECEXB battery. Includes printed safety instructions and EU ATEX declaration of conformity (EN, DE, FR, ES, IT).
DFW-IECEX3GD Ex Indicator for Zone 2/22.
DFW-IECEX3GDZB Ex Indicator for zone 2/22.
IECEx Zener barrier

PDF版产品页 All the specifications and images can be subject to variations and upgrades without prior notice.
